KDG-300

DOPPLER COLOR GRAPH

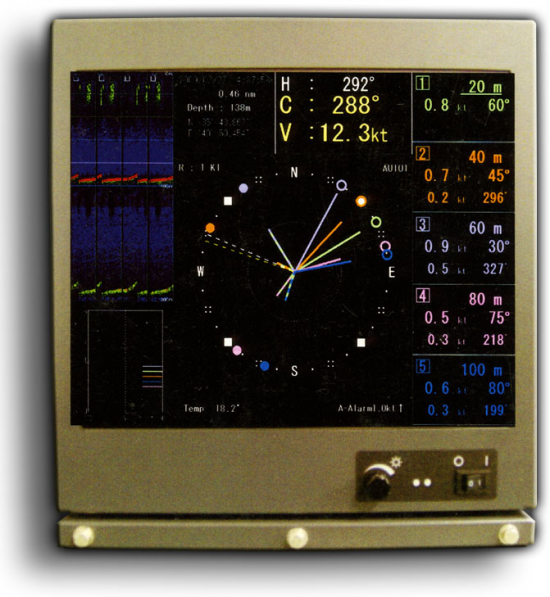

- 19 inch LCD monitor with high resolution picture.
- Max. 5 layers display with flow direction/flow rate and drift direction / flow rate.
- Four directions fish-finder display.
- Continuous and stable measurement with digital processing.
- Selectable mode for ground measurement, log measurement, and GPS..

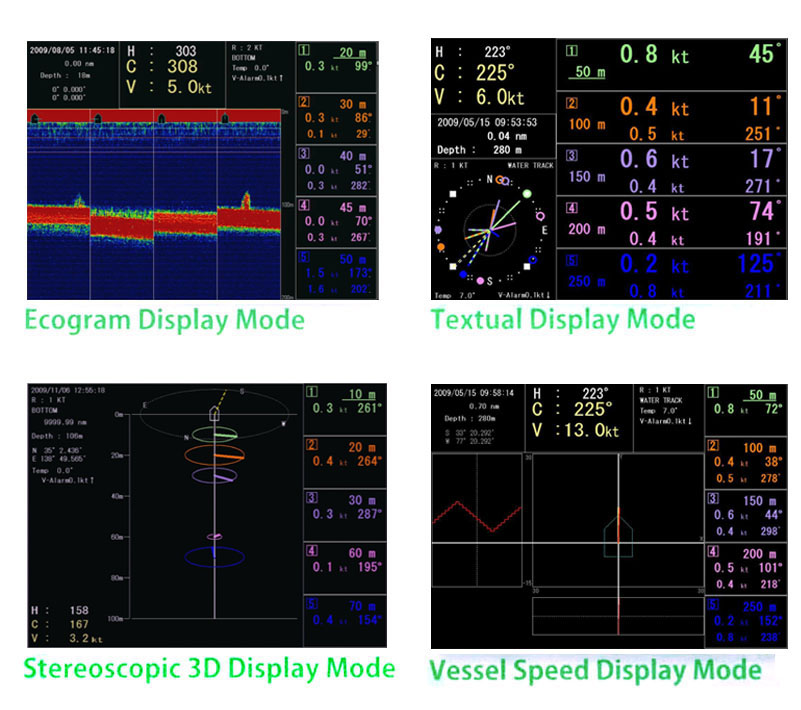

- 6 display modes if necessary.
- Tidal current information in the stereoscopic 3D view.

|
